Description
Detail of the H20 Beam
- Light Weight: the density of H20 Formwork Timber H20 Wood Pine Beam is only 4.8-5.0 kg per meter, it is easy to deliver, dismantle and install.
- High Tenacity: The Formwork H20 Timber H20 Wood Pine Beam is not easy to break off because of fiber.
- Good Proofing: The Formwork H20 Timber H20 Wood Pine Beam is good at waterproof, acid proofing, alkali proofing, moth proofing, and corrosion resistance.
- Environment Friendly: The Formwork H20 Timber H20 Wood Pine Beam belongs to renewable resources, could be used many time. And without poison, no damage to health.
- Good Straightness: The Formwork H20 Timber H20 Wood Pine Beam in not easy to deform.
Your Given Dimension
|
Product Name
|
Factory used wood formwork timber h20 beam | ||||||||||||||||
| Raw Material | Radiate Pine LVL ,Solid Pine/Spruce,Poplar LVL,Plywood,3 ply board. | ||||||||||||||||
| Flange | 200/160mm(height)*80mm(width)* |
||||||||||||||||
| Web | 27/30mm(thickness)×150mm( |
||||||||||||||||
| Length | 1.90, 2.45, 2.75, 2.90, 3.00, 3.30, 3.60, 3.90, 4.50, 4.90, 5.90 m, up to 12m ( any special length on clients’ requent) | ||||||||||||||||
| Glue | WBP Phenolic | ||||||||||||||||
| Standard | EN13377:2002 & DIN V 20000-2 standard | ||||||||||||||||
| Moisture Content |
<12%
|
||||||||||||||||
| Density |
4.7-5.5kg/m
|
||||||||||||||||
| End finish | red plastic wrap,waterproof paint,Metal cap. | ||||||||||||||||
| Surface finish | yellow painting,waterproof | ||||||||||||||||
| Usages |
slab formwork system,vertical formwork(wall,column,hydraulic climbing,etc.),adjustable arced
formwork etc. etc
|
||||||||||||||||

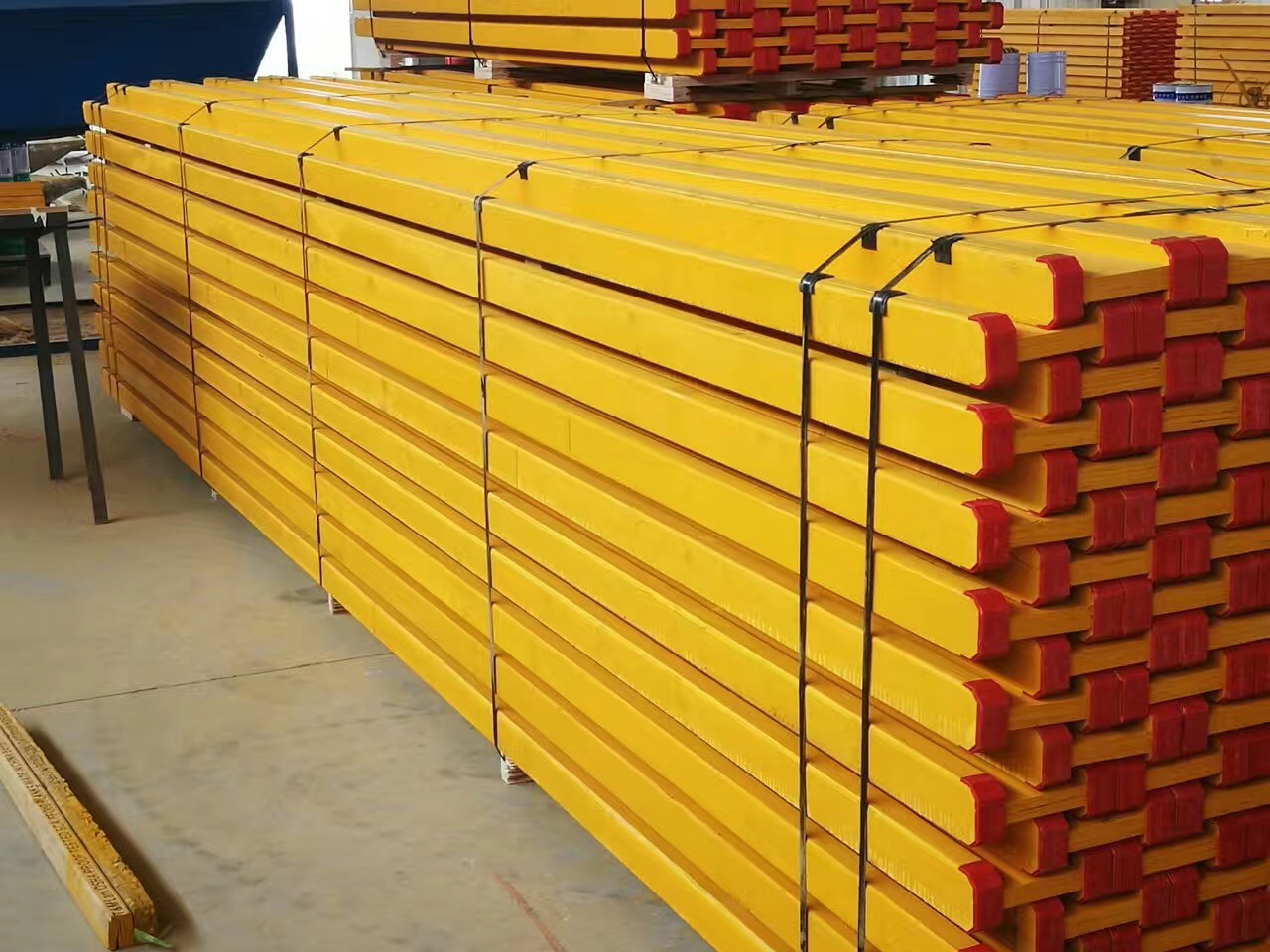

| Packing | Pallets on the bottom,and Steel band for strength | ||||||||||||||||
| Formwork H20 Beam TEST REPORT | |||||||||||||||||
|
|||||||||||||||||
3. Technology Parameter
3.1. Qmax (shear force):4.15KN
3.2. Mmax (bending moment):3.15KN.M
3.3. I (inertia moment):4610cm4
3.4. W (cross-section coefficient):461cm3
3.5. Moisture Content is about 13%
Timber Beam H20 within 5.9m limit. Generally, the load capacity
for different type of container as follow:
4.1. For 20’ feet container: maximum loading capacity is 2260m
4.2. For 40’ (GP) feet container: maximum loading capacity is 4600m
4.2. For 40’ (HQ) feet container: maximum loading capacity is 5000m
Wraped with Carton Paper+ Iron Tape for strenth；Loading:60CBM=approx 4680m/40″Truck.
